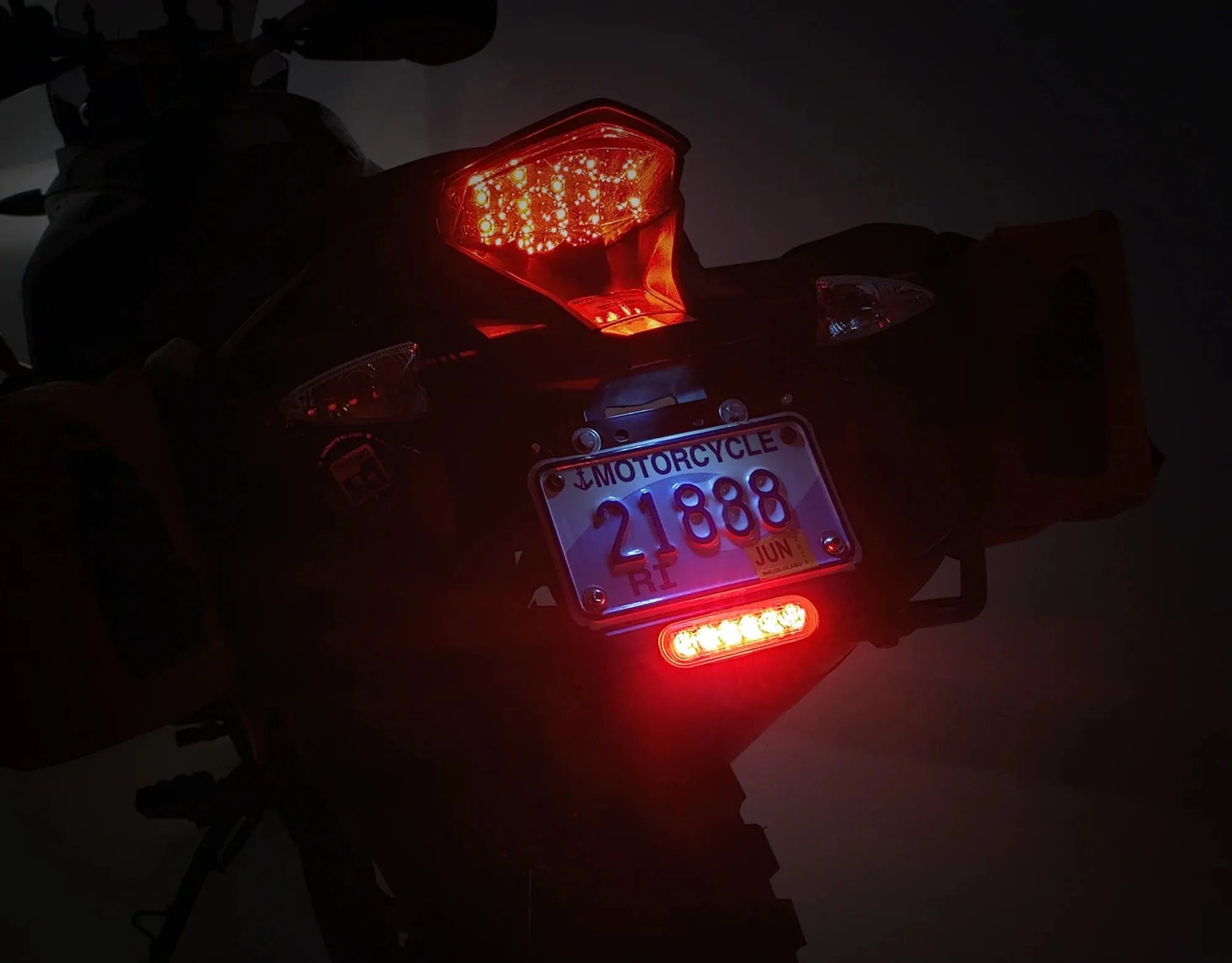

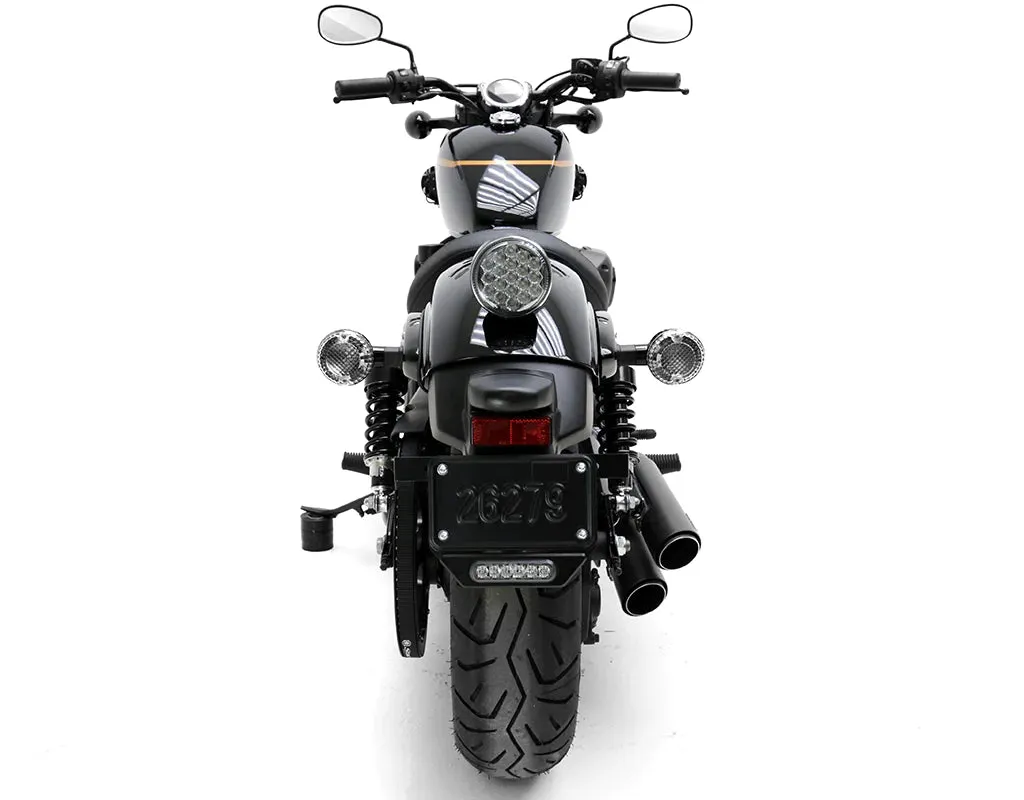

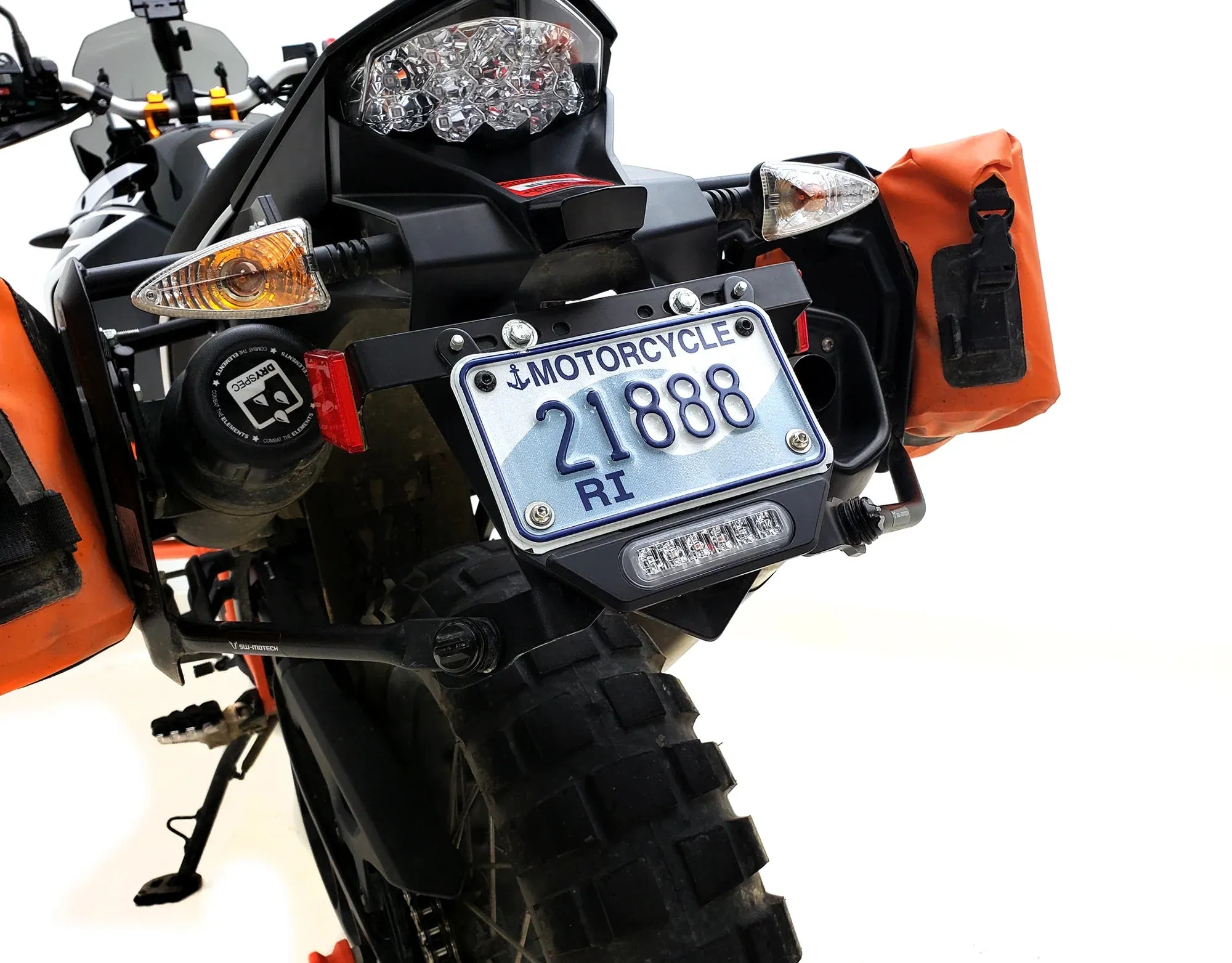

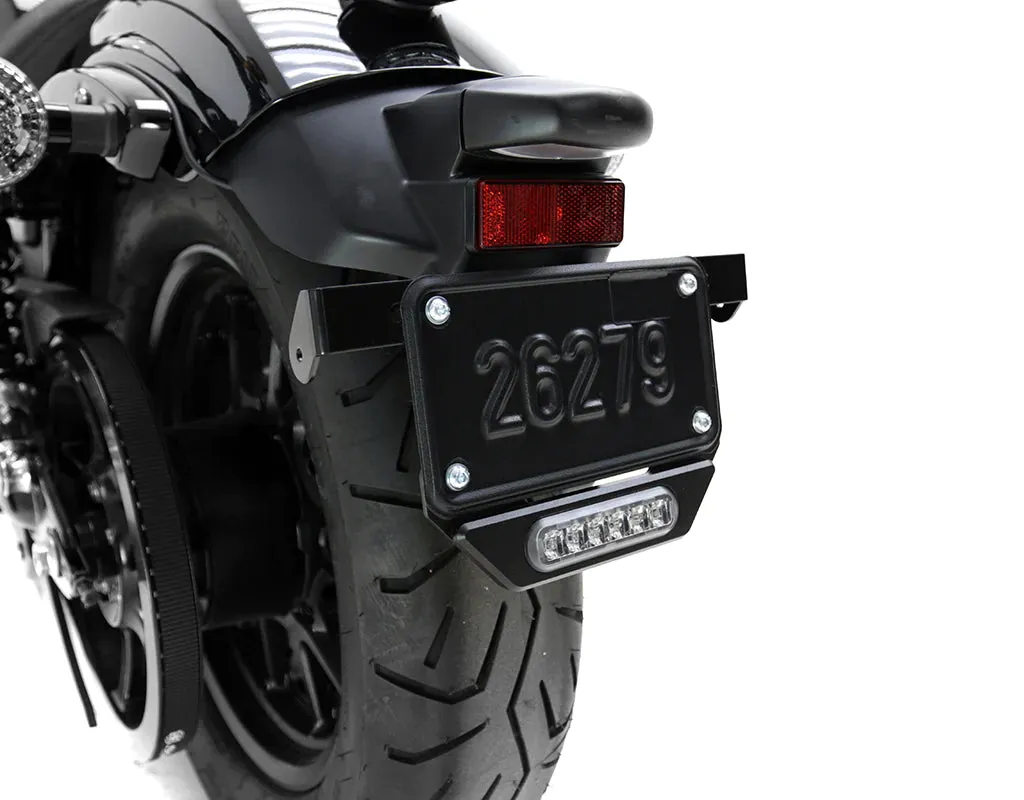

This Auxiliary LED Brake Light Kit was designed to mount a single B6 Pod above or below your license plate, re-using the existing plate mounting points.
Purpose built to create the most amount of light from the smallest, most low-profile, housing possible, the B6 is unbelievably bright but will practically disappear once installed on your plate. Complete with a waterproof micro connector and included posi-taps, the B6 will plug-n-play directly to the DENALI CANsmart controller or connect into any vehicle brake light circuit.
The B6 is the optimum auxiliary brake light to add to the CANsmart™ Controller. Connecting to the CANsmart™ enables programmable flash pattern brake light and deceleration activated auto brake light functionality making the B6 the brightest and most feature-rich auxiliary brake light on the market.
Features
- Dual Circuit: Running and brake
- 180 degree viewing angle
- Six high power LEDs
- Low 6 watt power consumption
- Low profile design

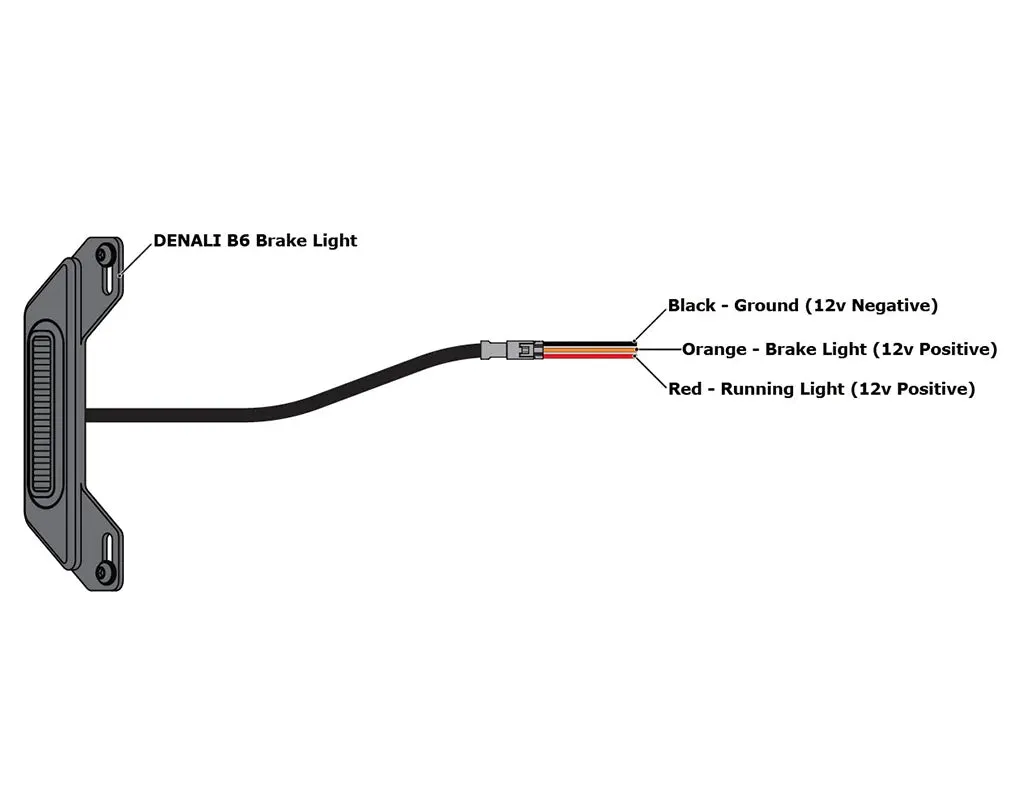

- Easy to connect to vehicle brake circuit
Specs
- Power Draw: 0.5 Amp
- Voltage: 12V DC

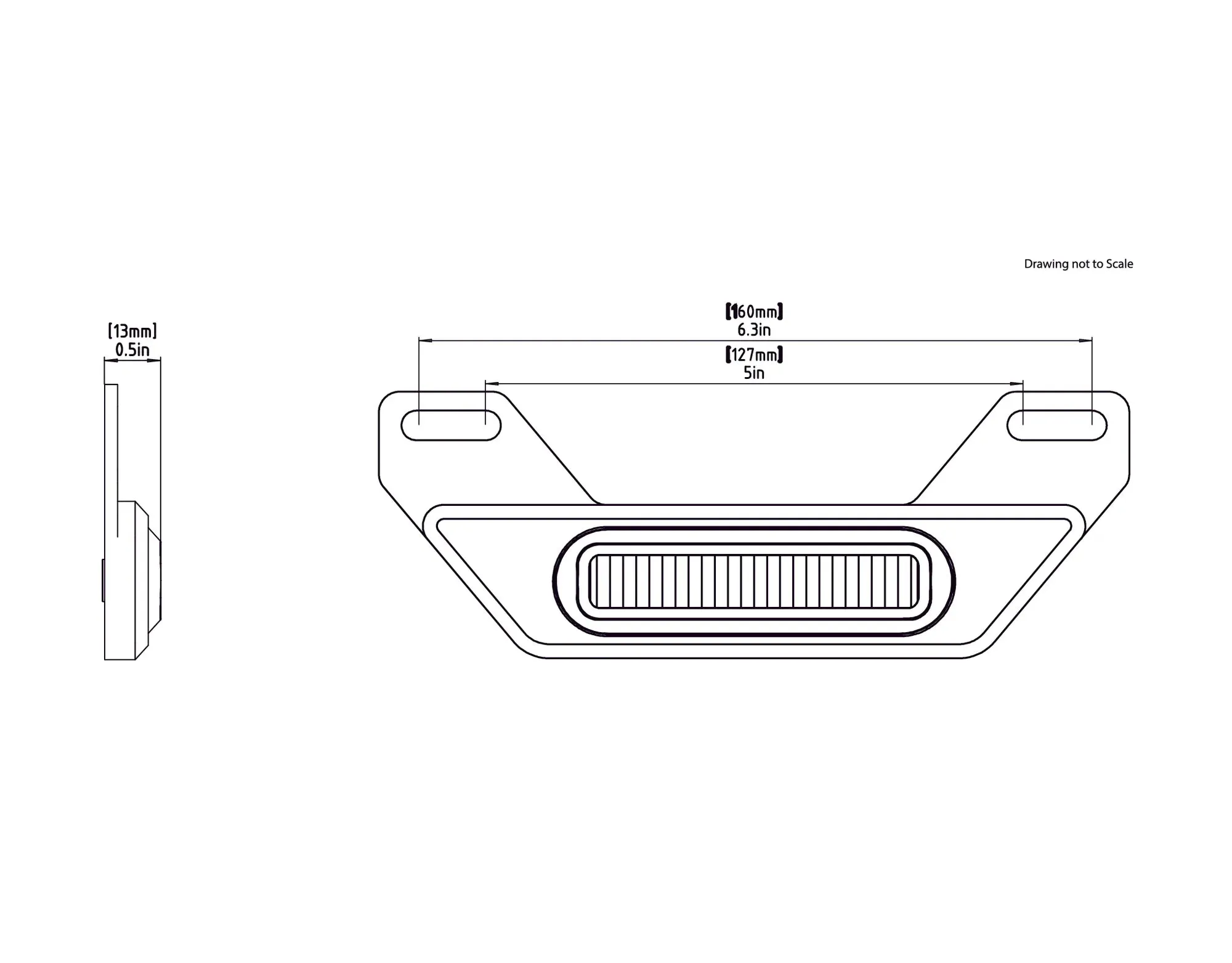

- Size: 4.4" x 1.1" x 0.42"
- Raw Lumens: 870
- IP67 Waterproof
Additional Features with DENALI CANsmart™ Controller
- Programmable deceleration activated brake light
- Programmable flash pattern brake light
- Plug & play waterproof connection to CANsmart™ Controller
What's In The Box?

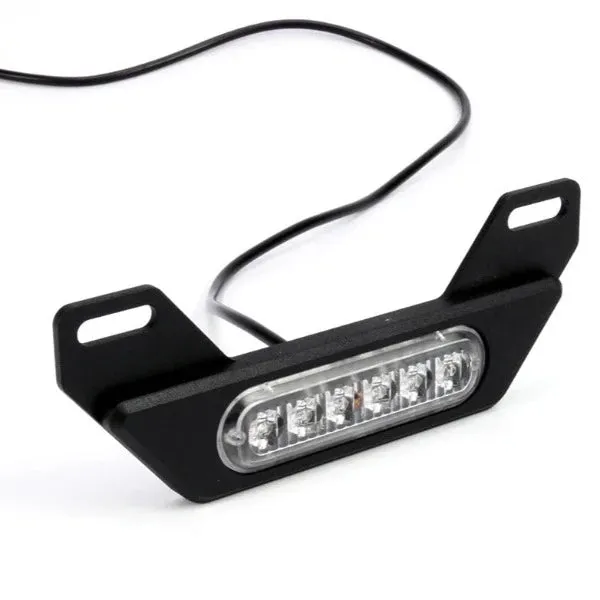

- (x1) DENALI B6 Auxiliary Brake Light
- (x2) M6 Mounting Hardware
- (x1) Wiring Pigtail
- (x3) Posi-Taps.
